The Non-triggered Gamma-ray Burst Catalog
Sky
Exposure (ASCII data)
This page contains a table of the sky exposure for the off-line
search. For each of 252 points (fixed on the sky in equatorial
J2000.0 coordinates) there is a corresponding "exposure fraction."
This number is the fraction of the live-time of the off-line search

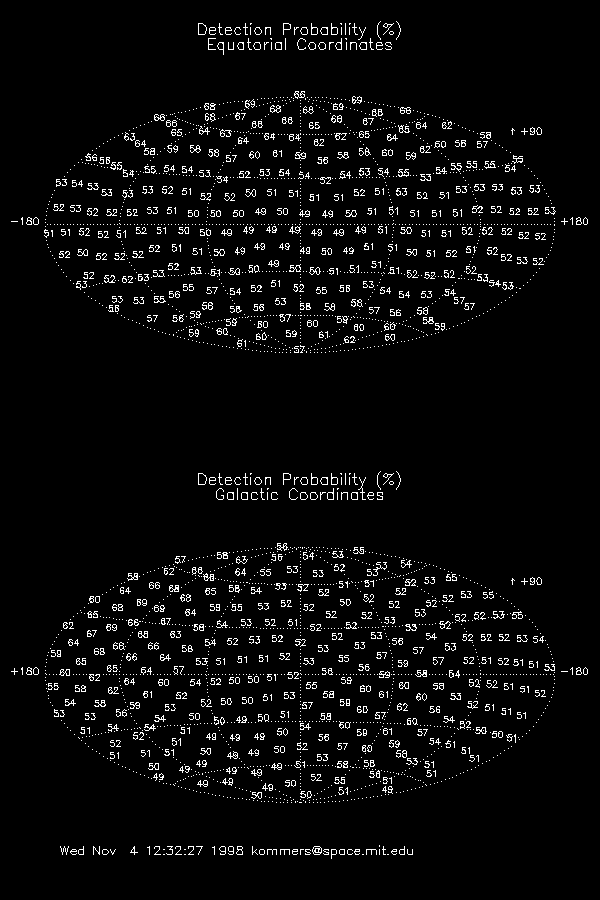

that each point is visible to the BATSE detectors. Here is a plot of the exposure fraction in
equatorial and Galactic coordinates. The total live-time of the
search is 1.33E8 seconds, which is 70.0% of the 1.90E8 seconds spanned
by the search (between TJD 8600.0 and 10800.0). The description of
each column is as follows:
| 1 | Right ascension |
| 2 | Declination |
| 3 | Exposure fraction |
<![CDATA[
1 2 3
270.0 68.4 0.68
257.5 56.0 0.65
282.5 56.0 0.64
251.2 43.0 0.59
270.0 44.6 0.58
288.8 43.0 0.58
248.7 29.9 0.55
262.9 31.5 0.55
306.0 39.9 0.57
306.0 52.2 0.64
234.0 76.7 0.70
234.0 64.3 0.68
342.0 68.4 0.67
329.5 56.0 0.64
354.5 56.0 0.65
323.2 43.0 0.61
342.0 44.6 0.62
0.8 43.0 0.59
320.7 29.9 0.52
334.9 31.5 0.54
18.0 39.9 0.57
18.0 52.2 0.62
306.0 76.7 0.69
306.0 64.3 0.66
54.0 68.4 0.68
41.5 56.0 0.63
66.5 56.0 0.65
35.2 43.0 0.58
54.0 44.6 0.59
72.8 43.0 0.60
32.7 29.9 0.54
46.9 31.5 0.54
90.0 39.9 0.60
90.0 52.2 0.65
18.0 76.7 0.68
18.0 64.3 0.66
126.0 68.4 0.68
113.5 56.0 0.65
138.5 56.0 0.65
107.2 43.0 0.62
126.0 44.6 0.61
144.8 43.0 0.59
104.7 29.9 0.55
118.9 31.5 0.56
162.0 39.9 0.58
162.0 52.2 0.62
90.0 76.7 0.69
90.0 64.3 0.67
198.0 68.4 0.69
185.5 56.0 0.67
210.5 56.0 0.66
179.2 43.0 0.59
198.0 44.6 0.63
216.8 43.0 0.64
176.7 29.9 0.55
190.9 31.5 0.56
234.0 39.9 0.58
234.0 52.2 0.66
162.0 76.7 0.69
162.0 64.3 0.66
284.3 18.3 0.52
270.0 18.8 0.53
277.0 6.7 0.52
255.7 18.3 0.53
263.0 6.7 0.53
270.0 -5.0 0.52
242.1 15.6 0.53
248.8 5.1 0.52
278.1 -15.6 0.52
284.8 -5.1 0.51
291.3 29.9 0.54
277.1 31.5 0.54
356.3 18.3 0.52
342.0 18.8 0.51
349.0 6.7 0.50
327.7 18.3 0.51
335.0 6.7 0.49
342.0 -5.0 0.49
314.1 15.6 0.52
320.8 5.1 0.50
350.1 -15.6 0.49
356.8 -5.1 0.49
3.3 29.9 0.54
349.1 31.5 0.54
68.3 18.3 0.53
54.0 18.8 0.52
61.0 6.7 0.52
39.7 18.3 0.52
47.0 6.7 0.51
54.0 -5.0 0.52
26.1 15.6 0.51
32.8 5.1 0.50
62.1 -15.6 0.51
68.8 -5.1 0.51
75.3 29.9 0.55
61.1 31.5 0.55
140.3 18.3 0.54
126.0 18.8 0.53
133.0 6.7 0.52
111.7 18.3 0.53
119.0 6.7 0.53
126.0 -5.0 0.52
98.1 15.6 0.52
104.8 5.1 0.52
134.1 -15.6 0.52
140.8 -5.1 0.52
147.3 29.9 0.55
133.1 31.5 0.56
212.3 18.3 0.54
198.0 18.8 0.54
205.0 6.7 0.53
183.7 18.3 0.54
191.0 6.7 0.52
198.0 -5.0 0.52
170.1 15.6 0.54
176.8 5.1 0.53
206.1 -15.6 0.51
212.8 -5.1 0.52
219.3 29.9 0.56
205.1 31.5 0.56
306.0 5.0 0.51
299.0 -6.7 0.50
313.0 -6.7 0.50
291.7 -18.3 0.51
306.0 -18.8 0.50
320.3 -18.3 0.50
284.7 -29.9 0.53
298.9 -31.5 0.52
333.9 -15.6 0.50
327.2 -5.1 0.50
297.9 15.6 0.52
291.2 5.1 0.51
18.0 5.0 0.50
11.0 -6.7 0.50
25.0 -6.7 0.50
3.7 -18.3 0.49
18.0 -18.8 0.50
32.3 -18.3 0.50
356.7 -29.9 0.50
10.9 -31.5 0.50
45.9 -15.6 0.51
39.2 -5.1 0.50
9.9 15.6 0.52
3.2 5.1 0.50
90.0 5.0 0.52
83.0 -6.7 0.51
97.0 -6.7 0.52
75.7 -18.3 0.51
90.0 -18.8 0.51
104.3 -18.3 0.52
68.7 -29.9 0.51
82.9 -31.5 0.52
117.9 -15.6 0.52
111.2 -5.1 0.52
81.9 15.6 0.52
75.2 5.1 0.52
162.0 5.0 0.53
155.0 -6.7 0.53
169.0 -6.7 0.53
147.7 -18.3 0.52
162.0 -18.8 0.53
176.3 -18.3 0.52
140.7 -29.9 0.53
154.9 -31.5 0.54
189.9 -15.6 0.52
183.2 -5.1 0.52
153.9 15.6 0.53
147.2 5.1 0.53
234.0 5.0 0.53
227.0 -6.7 0.53
241.0 -6.7 0.52
219.7 -18.3 0.53
234.0 -18.8 0.52
248.3 -18.3 0.53
212.7 -29.9 0.52
226.9 -31.5 0.53
261.9 -15.6 0.52
255.2 -5.1 0.53
225.9 15.6 0.53
219.2 5.1 0.53
324.8 -43.0 0.52
306.0 -44.6 0.54
318.5 -56.0 0.56
287.2 -43.0 0.57
293.5 -56.0 0.58
306.0 -68.4 0.60
270.0 -39.9 0.55
270.0 -52.2 0.58
342.0 -76.7 0.59
342.0 -64.3 0.58
327.3 -29.9 0.50
313.1 -31.5 0.51
36.8 -43.0 0.57
18.0 -44.6 0.55
30.5 -56.0 0.59
359.2 -43.0 0.53
5.5 -56.0 0.59
18.0 -68.4 0.61
342.0 -39.9 0.52
342.0 -52.2 0.54
54.0 -76.7 0.62
54.0 -64.3 0.59
39.3 -29.9 0.52
25.1 -31.5 0.52
108.8 -43.0 0.54
90.0 -44.6 0.54
102.5 -56.0 0.57
71.2 -43.0 0.54
77.5 -56.0 0.57
90.0 -68.4 0.61
54.0 -39.9 0.53
54.0 -52.2 0.58
126.0 -76.7 0.62
126.0 -64.3 0.61
111.3 -29.9 0.53
97.1 -31.5 0.52
180.8 -43.0 0.56
162.0 -44.6 0.58
174.5 -56.0 0.60
143.2 -43.0 0.57
149.5 -56.0 0.59
162.0 -68.4 0.61
126.0 -39.9 0.54
126.0 -52.2 0.58
198.0 -76.7 0.62
198.0 -64.3 0.60
183.3 -29.9 0.53
169.1 -31.5 0.54
252.8 -43.0 0.56
234.0 -44.6 0.55
246.5 -56.0 0.59
215.2 -43.0 0.54
221.5 -56.0 0.57
234.0 -68.4 0.60
198.0 -39.9 0.54
198.0 -52.2 0.57
270.0 -76.7 0.61
270.0 -64.3 0.60
255.3 -29.9 0.53
241.1 -31.5 0.53
0.0 90.0 0.67
90.0 26.6 0.53
162.0 26.6 0.55
234.0 26.6 0.55
306.0 26.6 0.54
18.0 26.6 0.53
0.0 -90.0 0.58
270.0 -26.6 0.53
342.0 -26.6 0.49
54.0 -26.6 0.51
126.0 -26.6 0.52
198.0 -26.6 0.52
